Circuit Units

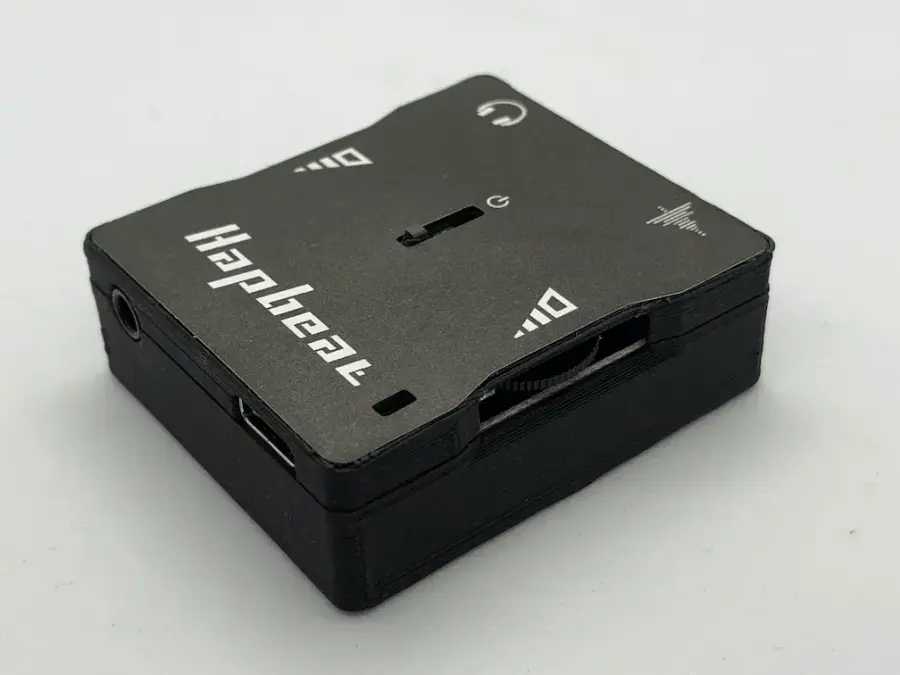

1CH circuit unit

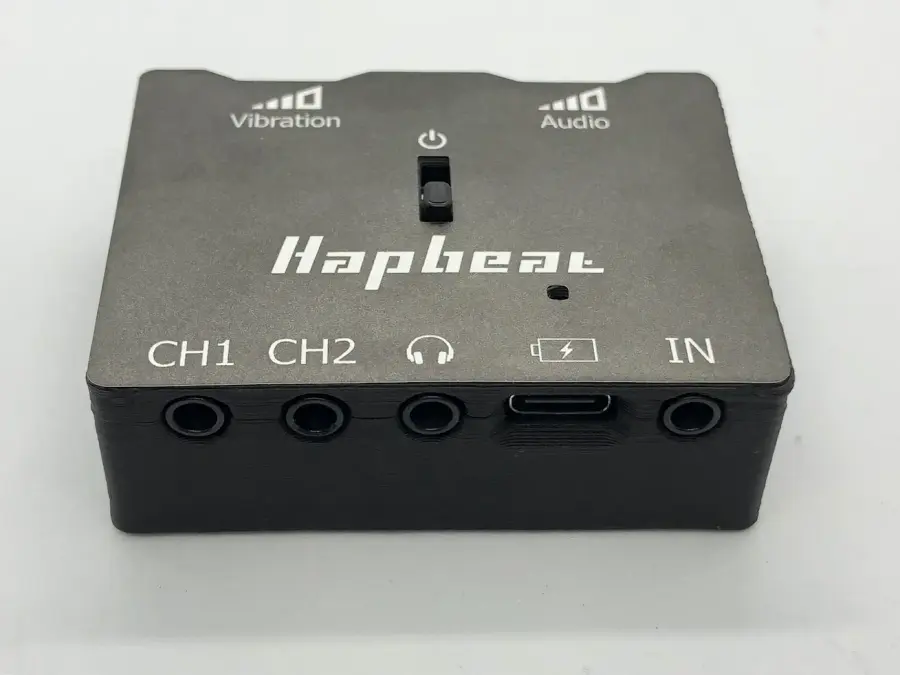

2CH circuit unit

Circuit unit to drive various motor units. 2CH can drive Duo, Solo, Band, etc. at the same time.

Reference price: 3,500 yen (1CH) / 6,000 yen (2CH)

Reference prices are approximate values. Actual prices will be shown on the sales website and quotation.

When the stock runs out, the product will be special-ordered. In that case, please note that the price will be significantly higher than the above amount because a new order for a new board will be required.

Technical Specifications

Maximum gain

44 dB (1CH) / 24 dB (2CH)

Charging method

USB-C 5 W (5V/1A, approx. 1 hour until fully charged)

Battery used

LiPo battery (3.7 V, 800 mAh)

Weight of main unit

35 g （1CH）/ 44 g（2CH）

Number of Vibration CH

1CH: monaural, 2CH: stereo

Wired microphone

Not supported
