Band

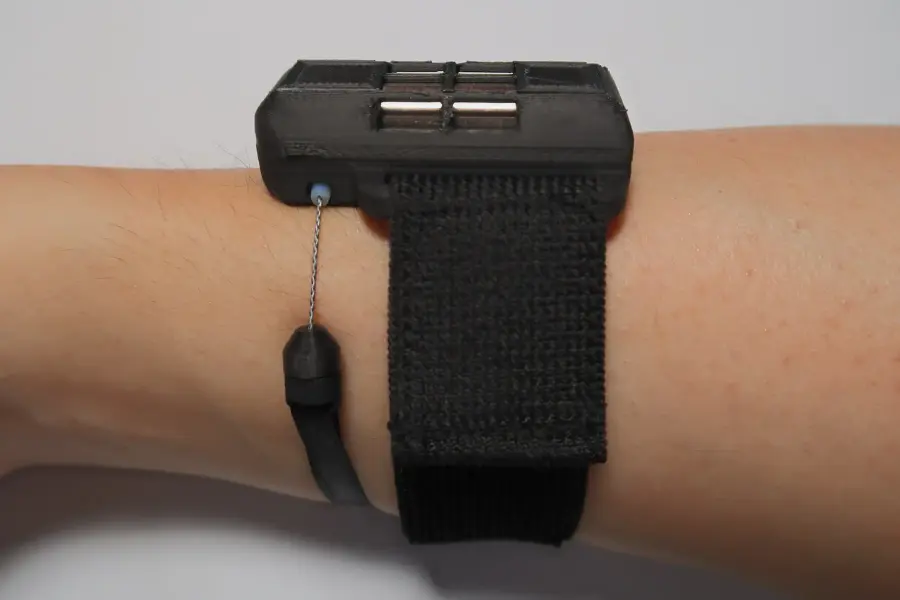

Worn on arm

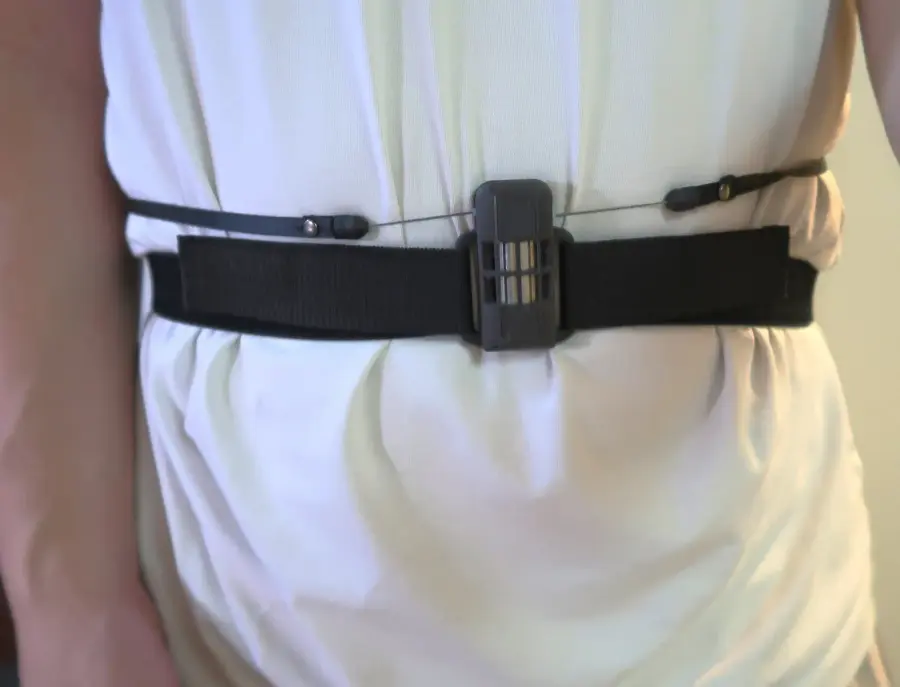

Example of attachment to torso

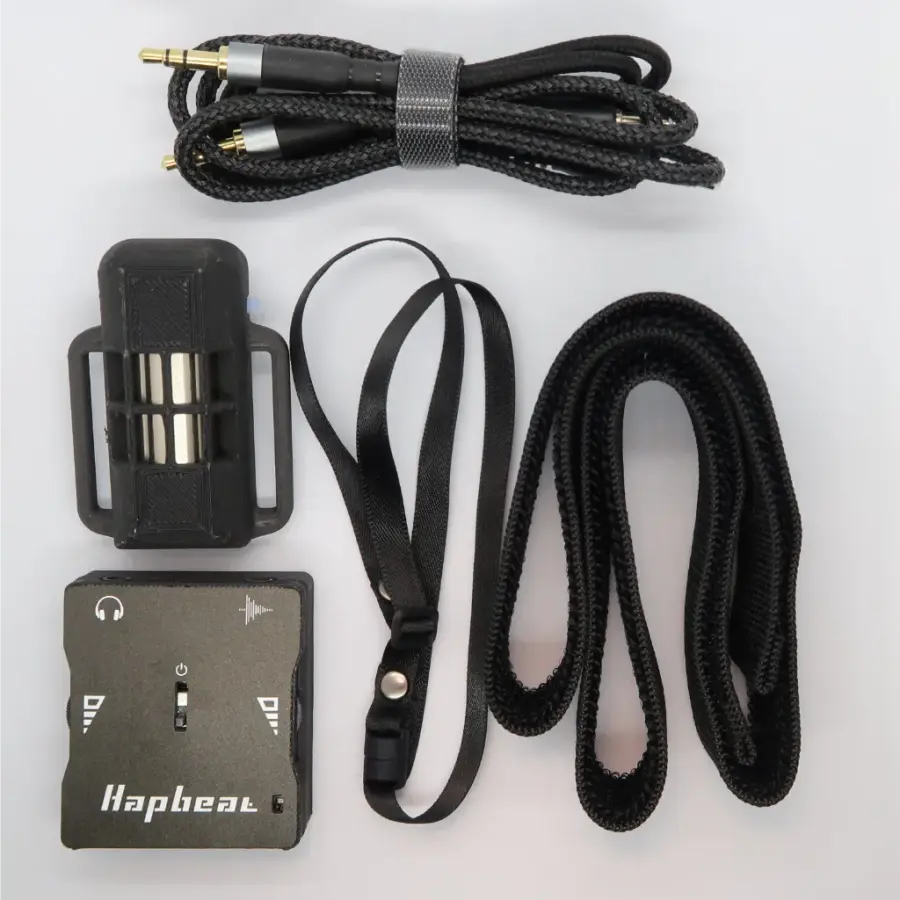

Band Set

The Band is a model that can be worn anywhere on the body, such as on the arms, legs, or torso, mainly for developers. It is suitable for use with games, VR, and other visual content, such as gunshots and the sensation of impact on the body. A belt + obi unit is separately required for use.

Reference price: 15,000 yen (motor unit + 1CH circuit unit)

Reference price list for belt + belt unit

Type

Price

Belt length

Arm

1,800 yen

approx. 14-30 cm

approx. 85 cm

Legs

1,900 yen

approx. 35-100 cm

approx. 45 cm

Body

2,000 yen

approx. 43-134 cm

approx. 18 cm

This value includes the amount of rubber extension. In addition to this value, the width of the enclosure (3.4 cm) is added.
In addition to this value, add the width of the enclosure (2.5 cm) and the length of the yarn coming out of the enclosure (2-3 cm per side).

BUY HERE

Reference prices are approximate values. Actual prices will be shown on the sales website and quotation.

Technical Specifications

Operating time

Approx. 30-60 min. *1

Charging method

USB-C 5 W (5V/1A, approx. 1 hour until fully charged)

Battery used

LiPo battery (3.7 V, 800 mAh)

Weight of main unit

35 g (motor unit only)

Number of Vibration CH

Monaural (left side audio input is used for vibration)

Wired microphone

Not supported

Input delay

Approx. 2.74 msec *2

This is a guideline when playing an EDM track that is constantly vibrating on battery power and looped at maximum volume. Continuous use while charging is possible.
Measured values with Duo are common to all models.
